产品属性
| 产品名称： | 球形蒸发浓缩器 |
| 产品编号： |
产品描述
1.简介
球形蒸发浓缩器专用于高浓度浓缩液的蒸发浓缩。
球形蒸发浓缩器凝聚公司一项发明专利技术，解决了在热水加热条件下的蒸发量小的技术难题。
本公司生产的球形蒸发器，完全按照GMP的规范要求设计、生产制造。
2.技术指标
加热温度：40℃~80℃，可调可控。
浓缩液浓度（固形物含量）：≥35%。不同物料，浓度有差异。
3.特点和优越的性能
特种设计的搅拌器，确保热量的散发、溶剂挥发，减小发泡现象。
无糊层，换热效率高、稳定。
浓缩液易于排放、清理。
一种专利设计加热器，确保水加热条件下的换热效率和温度的均一性。
在不破真空的条件下排液，提高了生产效率。
操作简便，易于清洗。
4.球形蒸发浓缩器构成
球形蒸发罐，包括搅拌器、加热器、真空泵、温度计、清洗球等。
进液控制装置，包括：进液泵（选配）、在线流量计（选配）、自控阀等。
回收装置，包括冷凝器、受液罐、回收液输液泵等。
真空装置，包括缓冲罐、真空泵、循环液储罐、冷却器等
在线清洗装置，以及快开式观察和清理手孔。
5.球形蒸发浓缩器型号代号

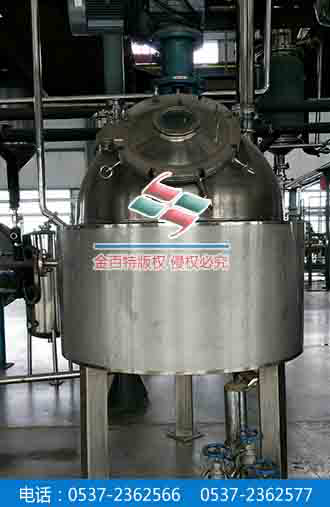

6.动态循环浓缩器型号规格及图片

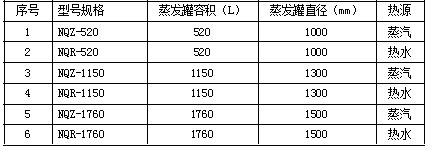

型号规格一览表

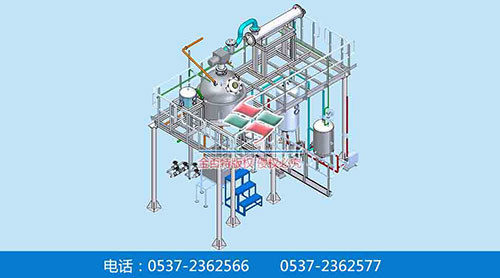

7.球形蒸发浓缩器三维设计图片
8.材质
材质有sus304、sus316L等选择，也可根据客户的要求定做特种材质。
9.应用范围
各种高浓度溶液的蒸发浓缩。

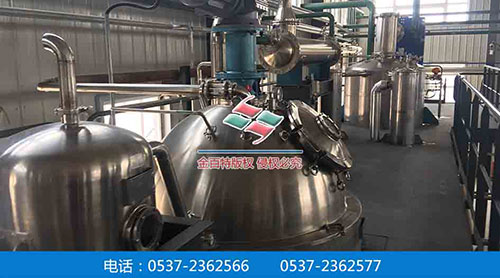

10.典型工程实例：
